Friday, 18 May 2018

Tacoma Intake Problems Solved!

I make it sound like all of the problems I had with the aftermarket air intake were fixed, right? Well, yeah actually. For the last month I've had a CEL/MIL warning, also known as a "check engine" light illuminated because my Tacoma has been running "lean" due to intake I had installed. Fuel economy went to 8mpg, terrible performance, and I would have failed emissions if I had been required to pass for renewing my registration. Fuck, I had enough of this nonsense.

Bought a factory (stock) air filter box online for $56, an intake hose also online for like $36, and a resonator and air filter from the stealership for $188 (tax included). Man, the stealer is such a waste of money, the resonator is just a plastic piece that dampens sound, but I had to do this.

What took a week or two of research and trial & error to install an auxiliary battery under the hood with extra wiring and a solid state isolator, only took 30 minutes to remove, and another 30 minutes to install the stock intake.

This was my engine about two weeks ago
Below is a screenshot of the engine monitoring app I used on my phone with a Bluetooth OBDII scan tool. The fuel trims are short term (left), and long term (right). Short term indicates what the ECU  or computer was doing at that second, in real time. Long term is averaged data that is stored in the computer. Long term is what counts; basically, because of the aftermarket air intake I had installed, my engine's computer was compensating for what it detected as too much air and not enough fuel, by adding 37.5% more fuel to the cylinders.



First Gen Tacomas get shitty gas mileage as it is; 16 city/22 highway (stock) estimated. When you have a First Gen Tacoma with a lift, canopy, off road tires, and other gear in it, you get less fuel economy. 200 miles to a tank, my wallet was taking a beating. I got rid of the aftermarket intake and  installed the factory one back.

It looks cleaner and simpler now, but the spare battery is gone

+4% long term, this is great news
I'll find a way to add the spare battery back, probably in the bed again. I had it there before but didn't like it where it was, but it makes better sense really.

Thursday, 8 February 2018

Time For Another Road Trip

Almost two weeks ago I headed out for a road trip so dope and fun its up at the top of all of the road trips I've ever taken. My mom's 70th birthday was coming up on February 12th and her ten other siblings were throwing a surprise birthday party for her; and my twin brother, his wife and son and my pops were going to be there too of course. I could have flown down there, but since I was laid off from my last job recently I decided to take advantage of the time off and drive down.

I wanted to leave as early as I could so I could explore along the way, but I had some personal business to take care of before I could leave, so I didn't end up getting out of Seattle until Thursday morning, February 8th around 10:00am. Before I could leave though, I had a lot of prep work to do.

I built a new platform for camping in the back of my truck; a 2004 Tacoma TRD with about 186,000 miles on it. I've got a SnugTop canopy on it too, so its ideal sleeping in.

Right side of the bed with platform and middle section

Left side of bed with platform and middle section

Both sides, middle partition not shown
I had built another platform a year or so back and it worked fine, but I didn't like it since it was difficult to move in and out of my truck. It also was level with the top height of the bed, which doesn't sound bad but it didn't leave much headroom between the canopy and sleeping platform.

I had a few goals here: 1) Lower the overall platform height for more headroom, 2) Have support legs only on the inner corners of the platform, and put hinges on them so they can swing up 3) Have the outer edges of the platform supported by D-Rings (carabineers) rather than legs to save weight and make it easier to move the platform out of the bed.

The two photos below show the D-Rings that support the platform at the outer edges from the factory installed tie-downs in the bed. I also drilled out the support legs on the inner corners and used 7" long zinc bolts to stabilize the legs since they were on hinges.

The right side, with the D-Ring support and zinc bolt on the inside.

Left side with its zinc bolt and D-Ring supports.
In addition to the zinc bolts and d-rings, I also installed black powder coated door/gate latches to keep the sections linked. Those didn't work as well as I had hoped, so I installed eye bolts with hooks which worked well. Funny thought here, I told a buddy of mine the design I was thinking of for building this, and he thought about it for a moment and said "I don't think you should do it that way". Well, the easiest way to convince someone to do something they shouldn't do, is to tell them not to do it.

The platform assembled and all of my gear minutes before departing

Another photo outside of Twin Falls, ID at Lowes' Hardware

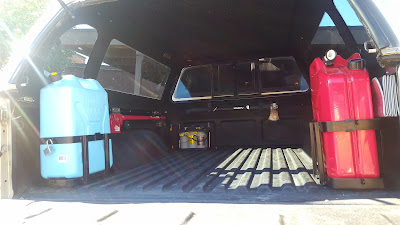

The gear I had in the back included a 5 gallon plastic jerry can for water, and another one for gasoline. I didn't feel like getting caught in the desert without water or gas, especially going through the Navajo or Hopi reservations in Arizona where you can go between 60-80 miles in between the nearest location for fuel.  I also had a memory foam mattress (full), my plastic bin with camp gear such as food, propane stove, utensils, backpack with clothes, laptop, books, and other gear for my truck.



I also upgraded the electrical system, including heavier gauge wiring between the battery and alternator, heavier gauge ground wires to the engine block and chassis, and added an auxiliary battery and battery isolator. I did all of this so I can use accessories like my laptop, portable heater for the canopy, and audio system without running the engine. I've gone through two alternators in the last year alone because of bad wiring and too much draw on the main battery and I'm tired of breaking down in the middle of nowhere without cell phone service.



Once I finished upgrading my truck, I made sure I had all of the supplies I would need for the road and headed out on Thursday morning.


Tuesday, 16 January 2018

What I've been working on since I crashed my M750 in 2015

In late summer of 2015, I was riding my Monster 750 up around Chinook Pass with a friend one Saturday afternoon. I decided to pull off the two lane highway (SR 410) to take some photos of Mt Rainier, but I took the turnoff too fast and hit gravel. Like a dummy, I grabbed a handful of front brakes while trying to steer. Front braking and steering never work well on gravel; the bike is going to lean over in the direction you are steering. This happened:


The loud rattling at the end was one of the valves smacking a piston. This is because one of the timing belts skipped a tooth when the bike went down; probably because gravel got caught inside the sprockets and belt teeth. Its explained more in Part II of the video above (below):


Rode it down the mountain on a dead cylinder and got it towed from Enumclaw. I managed to get the timing reset properly by reseating the belts but it wasn't running properly still and one of the belts was trying to walk off of the center crankshaft sprocket. Eventually took it to Ducati Seattle, they found the crankshaft sprocket was bent, and when they tried to remove the bolts that secured it, it snapped off. The bike was effectively totaled because the motor would need a complete rebuild, along with body and mechanical damage and it would exceed the value.

I took what Progressive Insurance paid me for the bike, then bought it back to use as parts for the CB500F I was building out (that's in one of my other blogs). I also decided to get another Ducati and spoke with Dave Roosevelt from Seattle Used Bikes. Dave had a 2007 Monster S2R he was selling on consignment for another customer. I gave him a $500 deposit and got a loan for the bike; bought it for $8000.

This bike was dope; had a dry clutch, Arrow exhaust, and a 1000cc dual spark engine. It had problems with the AF mixture, or the map loaded into the ECU though. I couldn't keep it running so I removed the Power Commander III that the original owner had installed and added my PC5 from my M750 and loaded a custom map into the bike.







The photos above are from when the bike was for sale at SUB; over the course of the last two years, I've made a lot of changes, I've listed them below and added photos.
  1. Removed the front fairing over the headlight
  2. Replaced the stock turn signals with LED short stalk turn signals
  3. Swapped the Speedymoto "tall boy" clip on handlebars with the Woodcraft ones from my M750
  4. Swapped the brake and clutch grips and reservoirs with the ones from my 750. The ones the S2R were stock axial type, the front brake grip and reservoir from my 750 was a radial style Chinese Brembo ripoff company called "Brombo" (WTF?). The clutch grip and master was a Brembo radial type.
  5. Swapped the handlebar grips with the ones from my 750
  6. Swapped the front brake lines with the ones from my 750
  7. Removed the spark plug wires and replaced with some upgraded Magnacore wires. Those weren't cheap either; about $300. I tried using NGK wires and the bike ran like shit, so I went for Magnacore based on reviews I read. I kept the stock wires though just in case.
  8. Replaced the Power Commander III with my PC5 from my M750
  9. Replaced the chain with a new one
  10. Replaced both tires since I blew flats almost within weeks of each other.
  11. Swapped out the rear brake light with an LED light that had integrated turn signals
  12. Got rid of the factory seat and installed my Ducati "Comfort Seat", and it really is comfy
  13. Swapped out the left side engine cover with the powder coated black one from my 750. Also swapped the stator from the S2R with the one from my 750 since the latter was brand new. Oh, and the voltage regulator; I had an extra one that was new; I did that too.
  14. Removed the factory airbox and installed the pod filters and velocity stacks from my 750. Also got rid of the crankcase breather and vented it out to the atmosphere.
  15. My buddy Cal fabricated a new exhaust up for me since he owed me a favor; instead of having it stacked on the right side, now I have one pipe up high on both sides.
  16. New coils, clutch slave cylinder, oil cooler, headlight, and also dropped the front gauge cluster down several inches to make it look more menacing.
    1. Note- I had to replace the coils because someone pulled one of the horizontal cylinder spark plug wires one day last year when the bike was parked in the parking lot at work. I rode home on only one spark plug in the horizontal cylinder, which could have damaged the coil. I don't feel like the coil going out on the road and having a dead cylinder, so I replaced it.
  17. New oil cooler lines also; one of the old ones was leaking.
  18. Added a new "open" clutch cover to show the dry clutch and replaced the pressure plate and springs with some powder coated red springs and an anodized black pressure plate
  19. Installed Speedymoto frame sliders.

Experimenting with DIY open belt covers. Used a Dremel to modify the stock covers




I'm happy with the outcome; Cal did a great job with the metal fabrication work. He's a great welder and also a bike builder himself. I'll have to wait though for the sun to come back out in a few months before I can ride it.

Tuesday, 2 January 2018

2018!

As mentioned in my previous post, I had been doing some work on my Tacoma in the recent months. Over the last year, I spent a lot of time upgrading the electrical system, some of it was successful, and some of it not so much. My biggest mistake was trying to over-engineer the charging system by installing a GM 130amp alternator. This worked, sort of but in the end it developed a wobble on its spin axis and I had to remove it and replace with a factory alternator. That was a waste of my time and money.

The remaining work I did relocated the auxiliary battery back from the truck bed to the engine bay and ran new wires from the primary battery to the auxiliary battery and the auxiliary battery to the amplifier for the audio system. I also added new circuit breakers in those segments so that I didn't have to replace fuses if a circuit was faulty. Additionally, I added a new battery isolator for the aux battery. The original one I had was ruined when I overtightened one of the charging terminals on it, so I bought a smaller one made by Blue Sea Systems. Blue Sea makes some good products and a lot of other enthusiasts on the Tacoma forums recommend their products.

The other major part of this project I had to completely re-architect was the intake system. The reason for this is because the intake filter on the existing K&N system I had was in the way of the only available space for me to install the auxiliary battery. I cut it in segments and reinstalled with Specter Performance intake components from the auto parts stores, and in theory it should have worked fine. Their parts are modular and allow you to build your own custom intake system, but anytime you have a modular intake system, you have gaps. The gaps are sealed by using their silicone couplers, which are secured with hose clamps. This means a greater chance for air leaks exist.

Air leaks in an intake system are bad with fuel injection systems. The system is constantly monitoring the intake with sensors and if the air flow rate varies anywhere in the system, the ECU alerts you with a check engine light. That means your emissions will also fail if tested, and your fuel economy usually gets worse. Well, my check engine light came on because there was an air leak in the system. The AF ratio, or air to fuel ratio should be 14.5:1, or 14.5 parts air, to one part fuel. Mine was much higher in regards to air. To compensate, the ECU was dumping more fuel into the combustion chamber which meant, my fuel economy got worse.

I knew this because I have an inexpensive Bluetooth OBD II scanner that allows me to monitor my engine in real time while driving with an app on my Android phone. One thing to look for is the long term fuel trims; which shouldn't be more than +10%. See the image below, this is an actual screenshot of my truck while driving. Its +37.5!




I managed to finally fix the problem but it took forever. I had to remove the intake system and reinstall it several times until I got it right. But one benefit about doing all of this was it allowed me to reroute the intake tube back to the right front fender port where the factory cold air intake used to attach to. That's better because it draws colder air from the fender, rather than the engine bay where the air is warmer. Two images below show the K&N intake I had before and the modular intake I installed recently.

This image is from last year, and the K&N system worked great. Problem was it obstructed the area I wanted to install the auxiliary battery.


The image directly below is the intake system I installed from Specter Performance parts and the K&N kit

The yellow battery visible above is actually the original battery I had installed about 6 years ago in 2011. Its a Optima Yellow Top, and yes its 6 years old and still retains a charge. Visible on the battery mount is the Blue Sea battery isolator; it combines both batteries when the engine is running, and isolates them when the engine is off so that accessories only draw from the auxiliary battery to prevent from running down the primary battery.I've inserted some more images below of the wire and cable work. I also added some rubber diamond tread matting against the firewall to cover up all of the holes I drilled during the work, and to prevent inadvertent grounding of positive electrical wires.





When I finished I also decided to replace the spark plugs since the engine had been running lean for a while. I'm familiar with spark plug conditions, and I knew right away it had gotten very lean and hot in the combustion chamber. The electrodes are white and glazed with yellow, which happens when it gets hot very fast. I replaced them with new NGK plugs and so far things are good.



Specter Performance probably makes some decent accessories and parts for your vehicle, but I would not recommend their intake components under any circumstances. With the K&N kit, I never had any problems with it since it was engineered and specifically designed for my vehicle, and was a solid piece of tubing. These modular kits only invite problems to occur, and I've had numerous problems, even as recently as yesterday. I you are considering modifying your own intake such as replacing your factory intake with a K&N kit or any other aftermarket kit; don't. Your vehicle's manufacturer spent millions of R&D, don't mess with it.





Sunday, 24 December 2017

How I concluded 2017

The new year is upon us and I'm pretty optimistic. I was working as a contract systems administrator for a large publicly held company in downtown Seattle; and the contract was supposed to last until the end of the year. Unfortunately it ended early, so my time is occupied finding a new job right now. Not how I would have preferred how the year ended, but C'est la vie.

In the meantime, I've been spending my free time divided between the job search and doing some more improvements on my 2004 Tacoma. For that, I've spent some time at my parents house in Bellingham since they have a garage and are gone for the winter. That gives me the opportunity to take care of the house and keep an eye on it, while I job search during the day.

Since I'm not working, I have to keep expenses down, which meant I couldn't really do any Christmas shopping for my parents. I did however re-cable and rewire my dad's entertainment center. I wired it up the first time several years ago, but I didn't do a very good job with all of the wires behind the TV. I had been wanting to improve this for a while, and this was the best time for me to do it.

The chaos at the beginning of the rewire project

Getting started, the surge protector is mounted against the wall

Cables are wound around rope "cleats" for management

Surge protector, cable splitter are mounted, cables are wound


View of the components along with broadband appliance

cable and phone lines protected from surges


View of everything after complete
I've done projects like these before, and there is always one part that challenges me the same; finding a way to route cables so it looks neat and organized, while being able to trace them and troubleshoot if needed. I'm very particular about cable management, and frequently will redo work I've already done if I find a way to improve it.

Here, I used rope cleats, or what you tend to find on boat slips and docks (used for wrapping rope around to secure the boat). These work pretty well if you have short length cables. I also made sure to run the coaxial broadband cables for the internet and cable TV, and the phone lines for the digital phone service through the surge protector. This does the obvious and protects against surges from lightning strikes, and also conditions the signal. I'll come back and label everything to make it easier to identify also.

Tuesday, 12 September 2017

1st Gen Taco Electrical Upgrade

A week or so ago (Friday of Labor Day weekend to be exact), I was headed out to the coast for some surf with friends. I took the ferry from West Seattle to the Kitsap Peninsula with the intent to head over towards Belfair, through Shelton, and then to Highway 101 which would take me to the coast. This was the best way cause I could avoid all the traffic on I-5 since every Tom, Dick, and Harry was also on the road leaving town for the holiday weekend. Normally if I leave town early for the weekend to go surf, I try and leave around noon  because traffic always sucks on Friday afternoons out here. Unfortunately for me I didn't leave until 2pm or so, and didn't catch the ferry until 5:30pm.

I made it to Southworth and got off the ferry and reached Belfair. I noticed that my audio system had gotten significantly quieter, and the only reason for this was because my battery was draining. I had already gone through this before back in January one evening while out at Neah Bay so I knew what to expect. I've got a blog post of that experience here along with video from my Contour camera.
Anyway, I stopped at O'Reilly and asked them to test the charging system and the voltage regulator tested bad.

The voltage regulator is inside the alternator and steps up or down the alternator voltage output to keep it roughly around 14.5 volts while the engine is running so that the battery remains charged at 12.6 volts. 14.5 volts compensates for loss due to resistance in the wiring and current draw. My alternator's output when the engine was running was about 11v, which is essentially a discharged battery. I bought a new battery in case I needed to swap my 6 year old Optima Yellow Top out while on the road; besides I had been planning on buying a new one anyway for an auxiliary battery.

After I was finished there I headed west towards Hwy 101, but it was getting dark and I knew I wouldn't make it so I headed to another O'Reilly in Shelton. I replaced my battery in the parking lot there and asked one of the employees to test my alternator again; same result as before. I went inside and bought a new battery to alternator cable and some battery post shims. I had also bought a new alternator with the intent on replacing it, but decided to just replace the cable and inline circuit breaker first. My thought was that the circuit breaker was causing too much resistance for the alternator to effectively recharge the battery. So I got to work replacing the Optima and installing the new AGM battery I bought on the way out.



The work itself is simple, but I was doing it in the dark and using a headlamp. I also was replacing the stock alternator to battery cable with a new one, so it took a while. After I finished, I checked the LCD on my DC inverter and it read 14.5 volts with the engine running; success!

This is my actual inverter; its mounted in the rear of the cab. See the display? 12.2 volts read from the battery.
I put everything away and headed out towards Aberdeen. Luckily I was fine the rest of the weekend and didn't have to worry about my truck anymore so I took the spare alternator back to O'Reilly on the way home for a refund. I decided the following weekend to tackle the project of resolving these electrical issues once and for all. Over the course of the next week I read countless Toyota enthusiast forums like Toyota 4-Runner.org and Tacoma World. All of these forums had a wealth of info, but one of the most common themes was a higher output alternator, and upgrading the wiring. The latter is known as upgrading the "Big 3", and consists of the battery (-) negative to engine block ground wire to a 2gauge wire, battery (+) positive to alternator charging wire to a 2 gauge wire also, and the fuse box to alternator and fuse box to battery wires. Some people go as far as the starter wire, but I didn't bother.

I started out Friday night last weekend, thinking it would take several hours, but I was way off. This was so much work; and I tried to break it up into three parts: 1) Auxiliary battery and battery isolator, 2) Cab electrical and accessories, 3) Engine bay wiring, fuse box, alternator swap and new battery.
The photo below showed what the work looked like when I started on Friday night, and as you can see it was a mess.


Where to put the auxiliary battery?
The auxiliary battery location baffled me; I had been reading the Tacoma forums and lot of the owners and enthusiasts were installing 2nd or auxiliary batteries under the hood, on the passenger side.
In the photo below, taken from yotatech.com member BajaTaco's write up on dual batteries in 1st Gen Tacoma trucks, you can see how he added a second battery under the hood on the passenger side. Unlike mine, he has no factory equipment there.


I would do that, but the anti-lock brakes actuator was in the way and this couldn't be relocated. I tried putting it in the cab behind the driver's seat but I just didn't like the way it looked, and settled on the truck bed.
Decided to reuse my Optima since it still worked great

Battery up front-left, axe mounted above it, high-mount jack, fuel and water cans


It involved routing a 2 gauge wire under the chassis to the bed of the truck, drilling holes large enough to add grommets that would allow the wire to fit through (to prevent cutting the wire insulation and grounding out). I routed the wire from the primary battery to the bed and connected it to the Battery Doctor isolator's main (+) terminal, and connected the aux (+) terminal to the Optima's (+) terminal. I then connected the Optima's (-) terminal to a battery ground wire I attached to the bed. I tried to use the side post terminals rather than the top so I could cap the top posts with factory caps to prevent arcs.

The battery isolator is pretty cool; it separates the main starting battery from the aux battery, but lets the main battery charge the aux battery. If I hook accessories up to the aux battery, it prevents the draw from going to the starting battery. I can also hit the override/reset switch on it and use the aux battery as a starting battery or a jump start battery if the main goes dead.

The cab electrical required running another lead back from the aux battery's (+) terminal, under the bed to the cab. There, I have it ran to a 100 amp inline circuit breaker and a power distribution block. The truck's audio system amplifier and DC inverter are connected to the power distribution block; this way they only get power from the aux battery. If I'm at the coast and I want to power accessories, I never have to run the motor to keep the primary battery charged, and never have to worry about a dead battery again.


  • The audio system alone was crushing my alternator and primary battery. The factory system was four speakers and a typical AM/FM/CD head unit. I got rid of all of that and replaced the front speakers with new 5.25" speakers, and replaced the rear with the same.
  • I took it further after removing the rear seats and cut out holes large enough to fit new 6.5" Kicker speakers, and installed a new 8" subwoofer in the tool compartment on the left side, behind the passenger seat. Goal was to keep it as factory looking as possible.
Car Toys had wanted to build a box for the sub and amp, but I didn't want that and if you check out my blog on that, you can judge for yourself why I decided not to have them do any more work on my truck. Fuck that company.

Additionally, my 1100 watt sine-wave DC inverter and fog lights would be connected to the power distribution block. At the moment, the lights are hardwired to the primary battery with inline fuses, but I'm going to route them through the fuse box with a relay and fuse to clean up the wiring.

Under the hood
Now it was time to get started on the work under the hood.

  • I would have to route that 2 gauge wire from under the chassis up to the engine bay and connect to the primary battery.
  • I also decided to replace all of the charging system wires with heavier gauge wires; this meant the main starting battery's (+) to alternator output terminal wire, fuse box to battery (+) wire, and fuse box to alternator output terminal wire.
  •  Sleeving and using heat shrink tube on the ends of all of the wires for aesthetics and to prevent from damage
New Super Start AGM battery with 2 gauge sleeved wires
Notice the top left, below the black cylinder is the ABS actuator


One other detail I added was a new 2 gauge battery ground wire from the alternator's mount point to the vehicle chassis. The reason I did this was because the Tacoma only had one ground wire that ran from the battery to the engine block. The block had multiple smaller gauge wires to the chassis, but that was it. I added the second ground wire as recommended in another forum I read. You can see it in the photo directly below of the alternator; its the black wire.

The alternator was going to be replaced also. The stock alternator was a 60 amp one, which was insufficient and I had chosen a GM 130 amp CS-144 alternator. That's right, a General Motors alternator. A lot of other Tacoma and 4 Runner owners have done this since the CS-144 is a direct bolt in alternator that requires almost no reconfiguration except a wire harness conversion to fit the Tacoma's oval style 3 pin harness.

Stock alternator here, much smaller than the GM alternator
The GM alternator I'm going to install; has a fan built into it to keep it cooler
 Of course, with a higher output alternator, I would have to upgrade the vehicle's 120 amp alternator fuse to a 140 amp fuse, but that would come later in the week. But now that everything was connected I decided to test it all out, and started the vehicle. Well, there was a problem.

Can you identify the problem?
In the photo above, the key has been switched on, but the engine is not running. Everyone has seen or is familiar with all of the noises, chimes, and lights that come on when you switch the ignition on but don't start the engine; one of those is the battery light. My battery light was not coming on. Why is that a problem? I'll explain.

First, I checked the LCD on my inverter, and an LCD battery gauge/USB  charger I recently bought on Amazon; both said 12v with the engine running. The engine should have been 14.5v but the alternator was not producing sufficient voltage to recharge the battery properly. This was a problem for operating the vehicle, and was going to damage the battery since anything in the 11-12v range is a discharged battery (remember a properly maintained battery should be 12.6v when the engine isn't running).

I checked the connections everywhere, did some more reading, and spoke to a Toyota mechanic/expert from JustAnswer who felt it was a few things. Primarily was the gauge of the wires I had used from the fuse box to the battery, and fuse box to the alternator. The 2 gauge wire from the alternator to the battery was fine he said. He also felt the 3/8 copper terminal lugs I used might have been too large. Well, ok. Some more parts I had ordered from Amazon arrived yesterday, and I would fix the issues above when I swap out the alternator.

Heavy shrink tube, GM-Toyota alternator wire harness adapter, inline fuse for the 2 gauge wire to the aux battery another inline fuse back to the inverter and amplifier, power distribution blocks, 140 amp fuse for the alternator, and 4 gauge wire
 Replacing the alternator should not be too difficult; I've done this before but going back and fixing the fuse box wires will be slightly more meticulous. I was afraid that the heavy gauge wires might have added too much resistance to properly charge the battery, we'll see.

I decided last  night was a good night to get started on the alternator swap so I got started around 8:30pm. I started by removing the battery and placing it on a charger to get it back to capacity. Then started by disassembling the fuse box and removing the wires I upgraded. The higher output alternator I was installing would also require a higher amp fuse since it was 130 amps and the stock fuse was only 120 amps. I removed the stock fuse at this time, which had blown the day before when I let a battery cable dangle and touch the chassis.

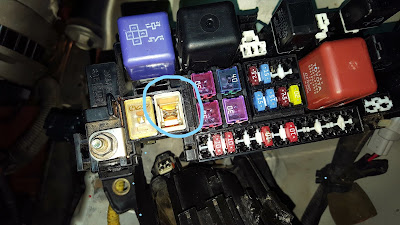

The stock 120 amp alternator fuse here blew the day before
 The next task was to remove the stock alternator; this was easy. I still had to remove the skid plate though, which was a bit of work but fairly easy. Removing the alternator was simple though; it only required loosening the tensioner bolt so I could release the tension on the belt, remove the belt, and then remove the alternator mounting bolt.

Stock alternator shown here with the belt tensioner pin installed still
And here it is with the pin removed
I tried loosening the belt tension but the alternator wouldn't swing, so I would have to remove the mounting bolt first. I tried removing the mounting bolt but it was torqued down pretty well so I  had to get my breaker bar out; that worked perfect.


The next issue I had was the wire harness that connects the fuse box to the alternator would not come unplugged. This happened the first time I swapped it out a year ago so I expected it to be an issue again. Eventually I was able to remove it without damaging the wires.



Someone on one of the forums I had been reading about upgrading the wires and installing the GM CS-144 alternators in Tacomas had used the term "shoehorn" as a way to describe trying to fit one of these alternators in. That's a great way to describe it, because its so much larger than the stock alternator, I had to shoehorn it in alright. I had to remove the mounting bracket and force the tensioner bracket down a few inches to accommodate the new alternator.

This was more or less a mock up to see how it would fit first
Notice the mounting bolt at the top of the alternator; there is a gap between the housing and the vehicle's mount point. I'm going to use washers or a spacer for this, but first have to get some from the store. The only other issue right now is the GM-->Toyota harness I bought to connect the vehicle's wire harness to this alternator was the wrong one, so I had to order another one last night, which wont arrive for another day. I'll just get this mounted first with all of the wiring set and then connect the harness when it arrives.

Side by side comparison of the stock and GM alternators
Tonight I'll probably have this thing wrapped up except for the wire harness. Cant wait to see how this works! I did learn from the weekend though, and kept the area fairly clean and organized while I worked.


Today I finished the alternator install with some spacers I bought; actually a nylon washer and a steel washer I drilled out a bit. Both of them filled the gap between the right side of the mounting bracket and the alternator case.


I also checked belt clearance and the belt is shorter with the CS-144 compared with the Toyota factory alternator, so I'll probably get a longer one. The forum post from Toyota-4Runner.org I've been using as a reference for this had a comment from one of the members that his alternator belt was too short so he used a power steering pump drive belt for his truck since it was longer. "Doc", the member who did the write-up didn't mention anything about his belt being too short but I'm going to stop by the auto parts store tomorrow anyway and see about getting a spare power steering pump drive belt.

I also finished all of the wiring, which included a new and larger gauge battery ground to engine block wire, and oversleeving the battery (+) wires to the starter and the alternator wire harness). I also put some heavier heat shrink wrap over the battery (+) wire near the terminal connector.

The heavier heat shrink tube is the pink sleeved wire
Here's a good view of the alternator with the drive belt around it
I'm a little nervous about the clearance between the alternator output terminal and the exhaust manifold on the left side of the engine. Its very close, which is why Toyota and Denso designed the OEM alternator with the output terminal on the left side of the case.  The photo below shows how little the clearance is with the battery wire and fuse box wire attached. I think a heavy duty terminal boot will be sufficient to prevent grounding, but I hope also able to resist the heat from the exhaust manifold.

This is the fuse box wire, and the battery wire is underneath it
I may swap the fuse box wire out for some other wire I ordered that's also 4 gauge and a bit smaller thickness, but only because I remembered I have some terminal lug boots that may provide more insulation. One other thing I might get is spark plug wire header insulators to protect against the heat.


I also replaced the stock 120 amp fuse with a 140 amp fuse. The gap here is from when I blew it on Sunday when I got careless with wiring. I bridged it for a little bit so I could drive to the store; pretty stupid I admit but hey, YOLO.


Well, I'm finished with this monstrous project. I worked all night Friday, most of Saturday and most of Saturday night but I've finished with the alternator, wiring and auxiliary battery. Friday night I finished up with the alternator, but when I went to start it on Saturday morning, it still only was charging 12.2v. I started to do some testing, but the idea that the heavier gauge wires were the problem just weren't making much sense to me. I had a hunch it was the 3 wire harness attached to the factory wire loom because in the past, the battery light has never come on when the alternator had problems. The battery warning light also was not coming on when I cranked the key over but didnt start the engine.

To test this, I took my multi-meter and continuity tester and tested the three wires; only the white white measured any continuity at 12.6v. I then took the yellow wire from the 3 wire harness, cut and stripped it, and grounded it against the battery (-) post. The battery light on the dash came on!


I then cut and stripped the red wire and spliced it with a spare GM two wire harness I have for a CS130 alternator.
Red and yellow wires both spliced from the OEM harness into the CS130 harness

Looking up from the bottom; that's the two wire CS130 harness and only tempoarary
 I disconnected the CS144 harness and attached the CS130 harness and attached the Toyota yellow wire (battery warning light), then started the motor: 14.6v!! Success!



 So its possible looking back that my alternator problems for the last year were the result of a faulty three wire harness. Even so, I had been wanting to get a higher output alternator and auxiliary battery since I have so much energy consuming equipment in my truck. No one wants to be in a spot where you need something but don't have it. The drive belt I'm using is the stock alternator belt, and although it works, its a bit shorter than I care for so I went to the auto parts store and bought an extra power steering pump belt, which will fit and is slightly longer.

Now that the significant work was done, it was time to move on to cleaning up the wiring and close the hood back up. Saturday night I got started on removing the 2 gauge wire I had ran underneath the truck a week or so before. While it was heavy duty, it was too rigid and I was unable to bend it and splice it into an inline fuse.


 I replaced it with that 4 gauge stranded wire I had bought and sleeved it with a section of split sleeve from the auto parts store. Here's a side by side comparison of the two.

Before I reattached everything, a shot of the bundle of wires from the main loom and the alternator



After all of that work, I debated taking the night off and finishing the wire clean up work another day, but I just wanted to be done with it. I also knew if i didn't finish it now, I never would, so I worked until the early morning hours, and here is what everything looked like all put back together:


The audio amp is on the left, and this is the space where the spare tire jack used to be. I ran the wire from the starting battery to the battery isolator and auxiliary battery in the truck bed, and a wire from the auxiliary battery back to the the cab and into the 130 amp inline fuse shown in the image above. A wire comes from the inline fuse to a power distribution block, and power wires run from that into the amp and DC inverter. The inverter is mounts to the lid that covers this space.



 Eventually I would like to move the battery isolator to the cab so I have easier access to it to override it if needed, and also to move the inline fuse from the auxiliary battery to the amp and inverter out of the storage space so I can change the fuse if it blows. But for now, I'm thrilled that this is finally done. I've wanted to do this now for the better part of a year, and it seems like the last few weeks nearly took a year.

After driving around with the new alternator and dual batteries for a few weeks, so far everything has been good and I havent noticed anything wrong. The drive pulley on the new GM alternator is a 6 groove pulley, while the Tacoma factory drive pulley is a 4 groove pulley. The belt has 4 grooves obviously, but fit the new alternator's 6 groove pulley fine; I just kept it in the middle of the pulley to keep it straight and prevent it from walking off. You can see in the image below the fit, although in this image the belt is on the outer edge.



I did some more reading online and found a thread in a forum where one guy purchased a four groove pulley that fit the GM alternator and had a shop that specialized in alternators swap drive pulleys out. I ordered a new belt drive pulley online from Quick Start Alternator Parts with four grooves and took it to West Seattle Auto Works and had them swap the drive belt pulleys out. These guys are awesome, the work only took a half hour or so and only cost $65. Now my alternator spins faster since the drive belt pulley is smaller, which also means my belt has more length in it. The pulley I ordered is shown below, although its only a stock image.


At this point I can say I'm done with the electrical work. Its charging at 14.2-14.5v while the engine is running, both batteries are charged at 12.6v when the engine is off. I still need to hook up my fog/driving lights, but am going to use new wires and a relay bank for that. The relay bank will have a relay for the fogs, a fuel pump cut-off relay for a switch I plan to install for anti-theft purposes, and a spare for future needs (shown below). I bought it on Amazon for like $70, although its no longer available right now.



I like this relay bank because its waterproof and engineered professionally, rather than some project box from Radio Shack. The wires are sleeved too, and it has a mounting bracket. The fuel pump cut-off relay is based on a concept I found online. I've got a few other things I need to do, like fix the vibration in the right side vinyl panel behind the passenger seat and make a platform for the back of the truck, under the canopy. The vibration is from broken plastic rivets probably and a pain in the ass to fix. I'll have to do a lot of the work from the work that I documented in the other blog I wrote about installing new audio and sound dampening equipment. The panel vibrates over bumps and when I've got the  music turned up enough.
